HPL40 Twin Screw Compounding Extruder with 43mm Center Distance and 200-350 kg/h Output for Engineering Plastics Compounding

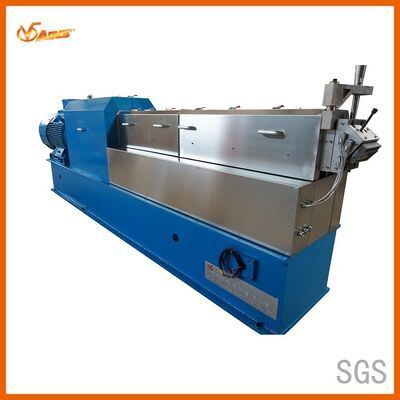

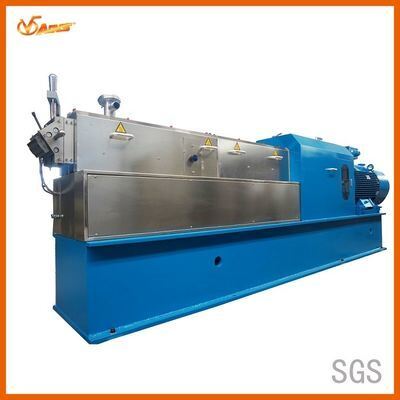

HPL40 Co-Rotating Twin Screw Compounding Extruder

The HPL40 is a versatile co-rotating twin screw compounding extruder designed for PA, PE, PP, ABS, PS, EVA, PET, and PBT engineering plastics, delivering 200-350 kg/h output with exceptional mixing quality and process stability.

Company Profile

Sichuan Advance Technology Co., Ltd specializes in developing, designing, and manufacturing co-rotation and counter-rotation parallel twin screw extruder production lines. Our core technology — the bilateral gear symmetrical driving system — delivers high torque, high efficiency, low energy consumption, and extended service life. We keep pace with the world's leading extruder manufacturers including Coperion, Berstorff, Leistritz, Toshiba, and JSW.

Configuration Features

Gearbox

Bilateral symmetry gear drive system with design service life exceeding 72,000 hours. Average torque coefficient = 10.4. Bearings sourced from SKF (Sweden) and INA (Germany) for maximum reliability under continuous operation.

Torque Limiter

High-precision torque limiter imported from Germany with accurate torque protection, high repeatability, and quick reset capability — safeguarding the gearbox and screw shaft from overload damage.

Barrel Technology

Equipped with integrated wear-resistant alloy steel liner matching W&P composition standards. The barrel channel features an annular jet design that prevents material blockage during extended production runs.

Screw Elements

Screw elements manufactured from W6Cr5Mo4V2 high-speed steel for superior wear resistance. Shaft material is high-grade alloy steel imported from Finland. Our proprietary mixing and dispersing element designs enable flexible production across diverse material formulations.

Heating & Electrical System

German-imported heating rods for precise temperature control. PLC and instrument control with separate control cabinet and power cabinet — strong and weak electrical circuits are isolated for enhanced safety and reliability. Machine frame constructed from high-rigidity integral steel plate welding.

Typical Applications

• Reinforce Modification: PP, PA, PBT, ABS, PC, POM, PPS, PET + Carbon Fiber, Glass Fiber
• Filled Modification: PE, PP, EVA + CaCO₃, Talcum Powder, Titanium Dioxide, Carbon Black and other inorganic fillers
• Masterbatch: Color masterbatch, flame retardant masterbatch, carbon black masterbatch, degradable masterbatch
• Plastic Alloy: PC+ABS, PA+ABS, PA+PE, PBT+PET, etc.
• Special Engineering Plastics: PEEK, PEI, PPS, PPSU, PA6T, PA9T, LCP, etc.
• High Compounding Dispersion: Nano materials, powder coating, fiber grade masterbatch
• Reaction Extrusion: Polyreaction and polycondensation

Technical Specifications

Contact us today for application-specific configuration recommendations and a competitive quotation for the HPL40 twin screw compounding extruder.
